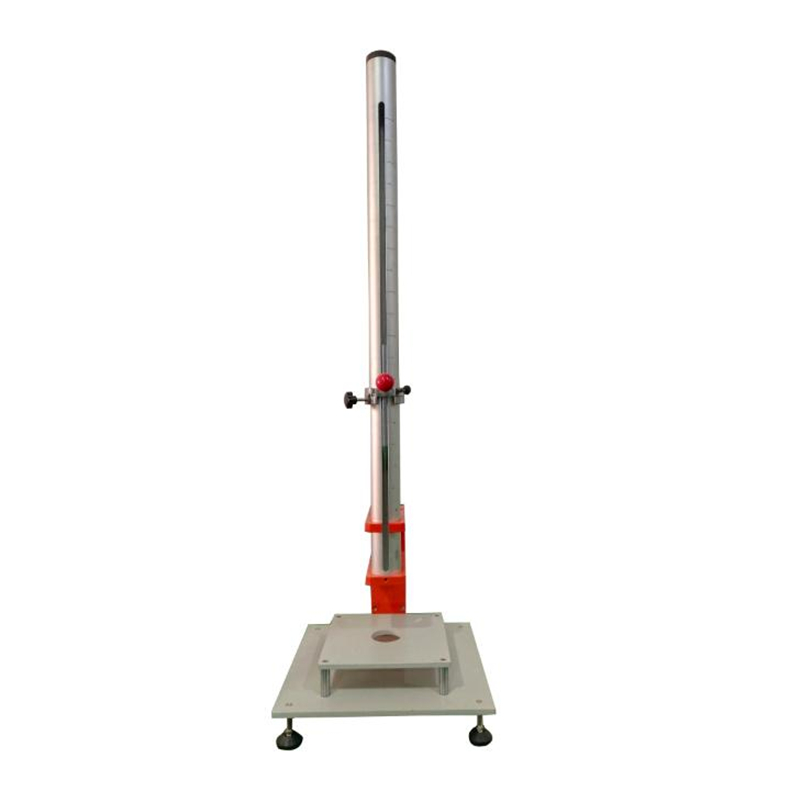

Drop Weight Impact Tester Board for Plastic Sheets and Honeycomb Panels Board Impact Testing Machine

Name: Drop Weight Impact Tester Board for Plastic Sheets and Honeycomb Panels Board Impact Testing Machine
Brand: HUAKAI
Price: 700 USD

Wholesale Drop Weight Impact Tester Board for Plastic Sheets and Honeycomb Panels Board Impact Testing Machine from china suppliers

Accuracy Class : Standard Accuracy

Protection Class : IP65

Type : Testing Machine

warranty : 1 Year

Price : $700-2,800 / piece

customized support : OEM, OBM

Dimension : W450*D450*1500mm

MOQ : 1 piece

Accuracy : Drop hammer height (adjustable): 0-1000mm

Place of Origin : Guangdong, China

Application : Impact Testing, Strength Testing

Brand Name : HUAKAI

Impact Hammer Weight : 5kg

Drop Ball Release Method : Manual Release Mechanism

power : 600W

Voltage : 220 V

Contact Now

Product Overview

Drop Weight Impact Tester Board for Plastic Sheets and Honeycomb Panels Board Impact Testing Machine

The Board Impact Testing Machine is designed to evaluate the impact resistance and quality of various board materials, such as PP boards, PT boards, and honeycomb panels. By dropping a specified weight from a controlled height, this tester simulates real-world impact conditions, allowing manufacturers to determine the durability and mechanical performance of sheet materials. It is widely used in production quality control, material research, and industrial laboratories.
Functions & Application Areas
Functions:

* Simulates free-fall impact to test material strength and durability.
* Adjustable drop height to meet different testing requirements.
* Provides accurate evaluation of board quality based on damage analysis.
Applications:

* Plastic sheet manufacturers for quality control and product improvement.
* Composite panel and honeycomb structure testing.
* Industrial research and development laboratories.
* Packaging material performance evaluation.

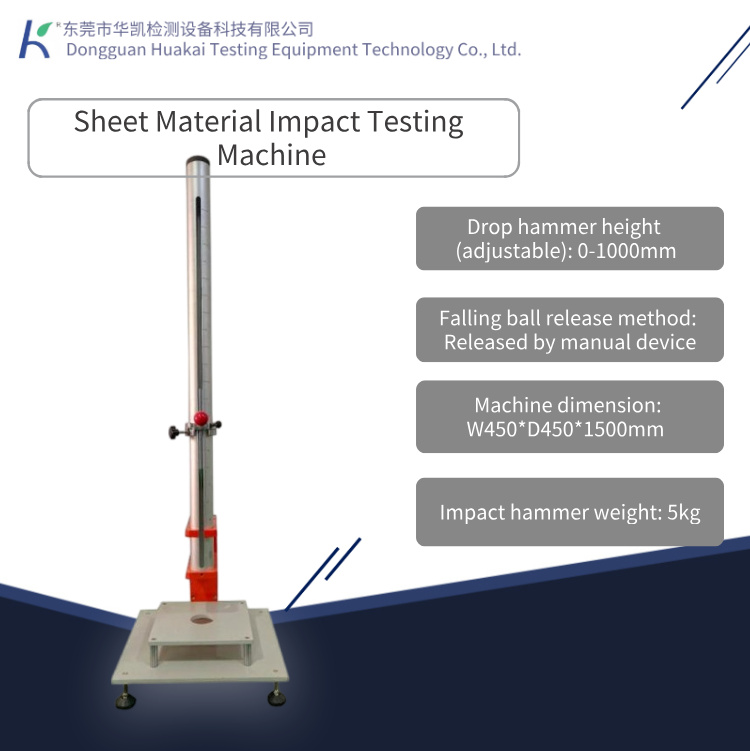

Product Paramenters

Item	Specification
Drop Hammer Height (Adjustable)	0–1000 mm (manual adjustment)
Drop Ball Release Method	Manual release device
Machine Dimensions (W × D × H)	450 × 450 × 1500 mm
Impact Hammer Weight	5000 g

Products Description

Structure & System Configuration
The HK-L5 is equipped with a stable frame, adjustable drop hammer system, and precision guide mechanism to ensure vertical free fall. The manual release mechanism provides precise control over the impact process. The compact design makes it suitable for laboratory and production floor testing.
Testing Principle
The test is performed by adjusting the drop height to a predetermined level, then releasing the drop hammer to impact the test material. The damage to the material is observed and recorded to assess its impact resistance and overall quality.

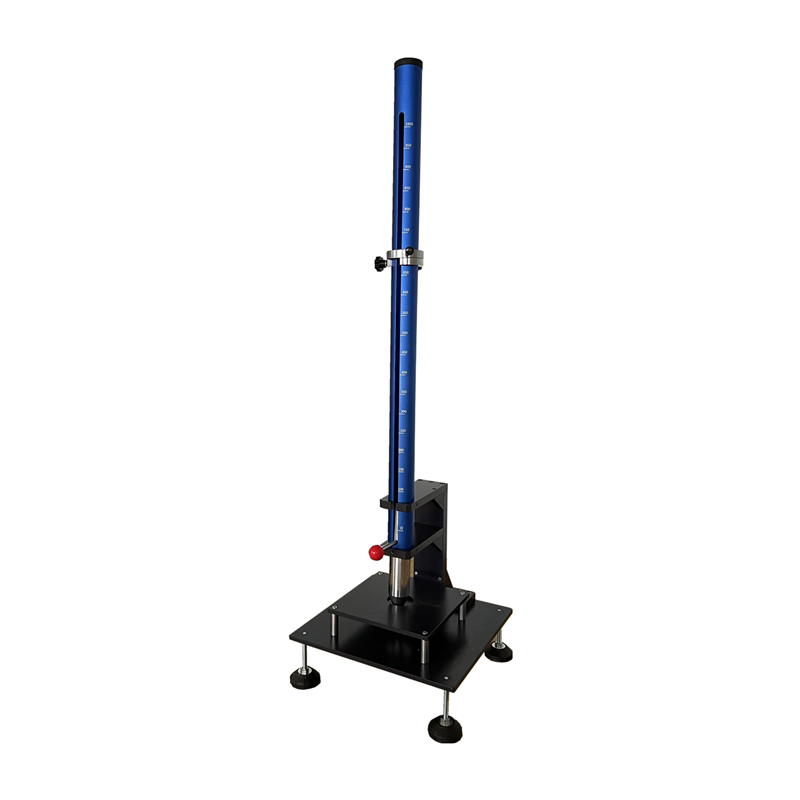

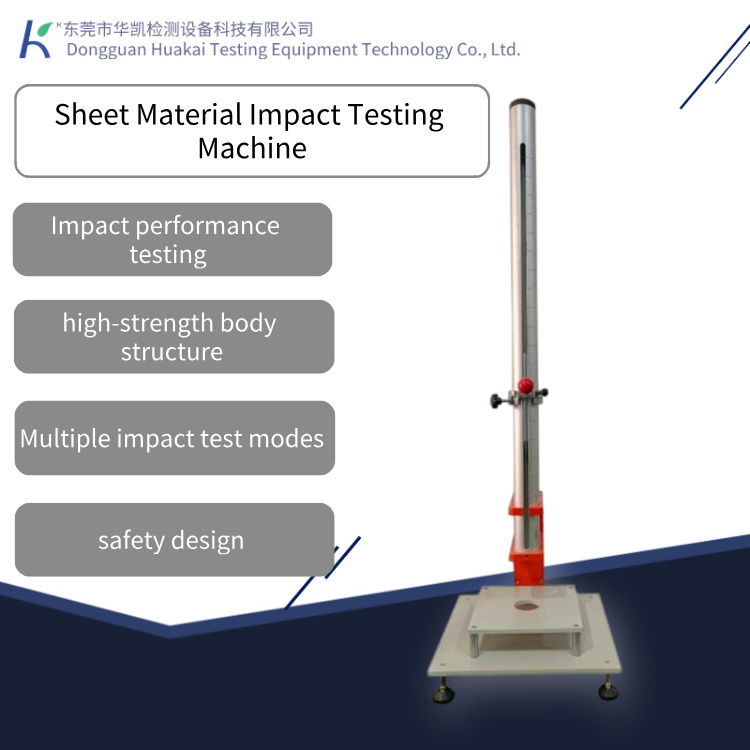

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
