Impact Head Drop Impact Testing Equipment Luggage Durability and Damage Degree Tester

Name: Impact Head Drop Impact Testing Equipment Luggage Durability and Damage Degree Tester
Brand: HUAKAI
Price: 1 USD

Wholesale Impact Head Drop Impact Testing Equipment Luggage Durability and Damage Degree Tester from china suppliers

Dimension : 120cm *120cm *210cm

MOQ : 1 piece

Accuracy Class : High Accuracy

Brand Name : HUAKAI

Voltage : 220 V

Protection Class : IP65

Maximum Height : 1500mm

power : 1000W

warranty : 1 Year

Drop Ball Control Method : DC Electromagnetic Control

customized support : OEM, OBM

Accuracy : Maximum height: 1500mm

Application : Abrasion Tester, Impact Testing

Price : $1,500-3,500 / piece

Type : Testing Machine

Place of Origin : Guangdong, China

Contact Now

Product Overview

Impact Head Drop Impact Testing Equipment Luggage Durability and Damage Degree Tester

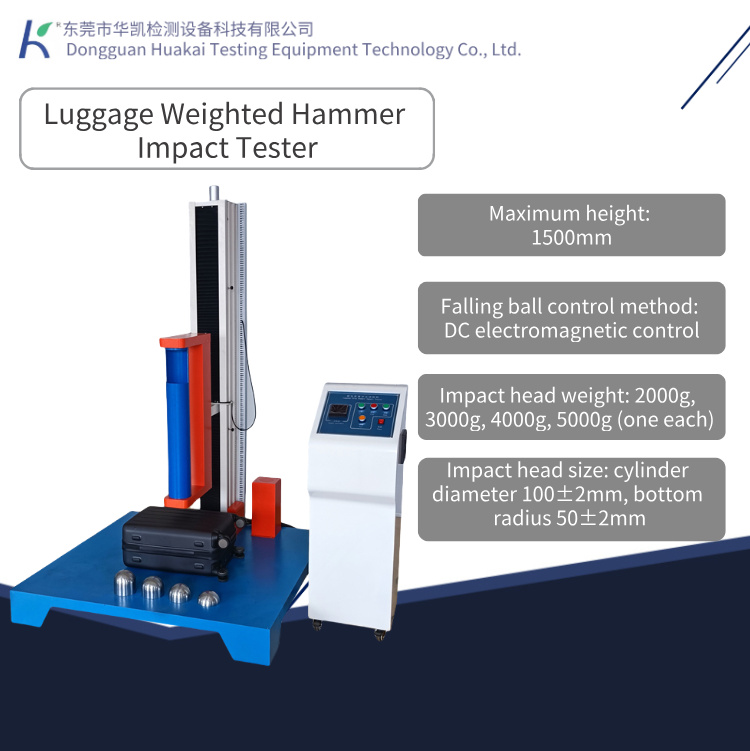

The Luggage Drop Hammer Impact Testing Machine is specially designed to evaluate the impact resistance of molded luggage and related materials. The instrument drops a standardized hammer head with a specified weight from a set height, striking the sample to assess the degree of damage. It is widely used by luggage manufacturers, quality inspection agencies, and research institutions.
Functions and Applications
* Simulates real impact conditions during luggage handling and transport.
* Tests the durability and structural resistance of suitcase shells and molded luggage materials.
* Provides data for improving product design, material selection, and quality assurance.
* Applicable for both R&D and production quality control processes.

Product Paramenters

Parameter	Specification
Maximum Drop Height	1500 mm
Drop Control Method	DC electromagnetic control
Impact Head Weights	2000 g, 3000 g, 4000 g, 5000 g (each included)
Impact Head Size	Cylindrical diameter 100 ± 2 mm, bottom radius 50 ± 2 mm
Machine Dimensions (L×W×H)	120 × 120 × 210 cm
Power Supply	1∮, AC 220V, 2A

Products Description

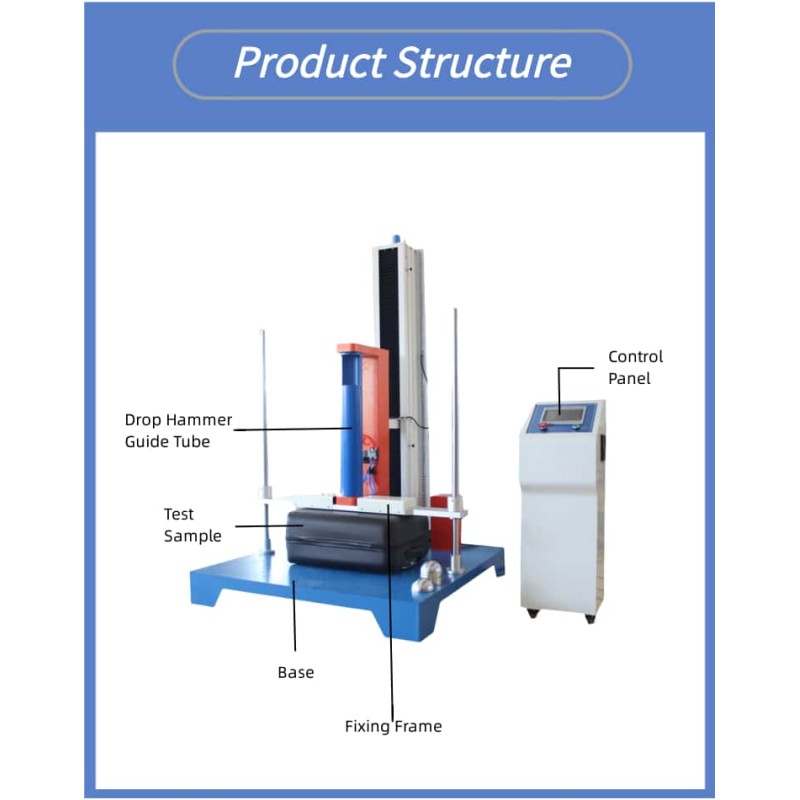

Structure & System Configuration
* High precision drop hammer impact structure
* Electromagnetic release control system
* Adjustable drop height mechanism
* Multiple interchangeable impact hammers
* Heavy duty machine frame for stability
* Simple operation and reliable testing performance
Standards
* JIS K6745
* JIS A5430
* QB/T 2918-2007
* QB/T 2155-2010

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.

Impact Head Drop Impact Testing Equipment Luggage Durability and Damage Degree Tester Images
