HUAKAI Luggage Handle and Trolley Reciprocating Fatigue Tester - Evaluate Pull Rod Durability and Structural Strength

Name: HUAKAI Luggage Handle and Trolley Reciprocating Fatigue Tester Evaluate Pull Rod Durability and Structural Strength
Brand: HUAKAI
Price: 3 USD

Wholesale HUAKAI Luggage Handle and Trolley Reciprocating Fatigue Tester - Evaluate Pull Rod Durability and Structural Strength from china suppliers

Protection Class : IP65

Weight : 180kg

Price : $3,500-4,800 / piece

Application : Strength Testing

MOQ : 13060 pieces

Accuracy : Testing stroke: 20~100cm (adjustable)

Type : Testing Machine

Accuracy Class : High Accuracy

warranty : 1 Year

Dimension : 100*100*190cm

customized support : OEM, OBM

Place of Origin : Guangdong, China

Voltage : 220 V

power : 1000W

Brand Name : HUAKAI

Frequency : 50HZ

Contact Now

Product Overview

HUAKAI Luggage Handle and Trolley Reciprocating Fatigue Tester - Evaluate Pull Rod Durability and Structural Strength

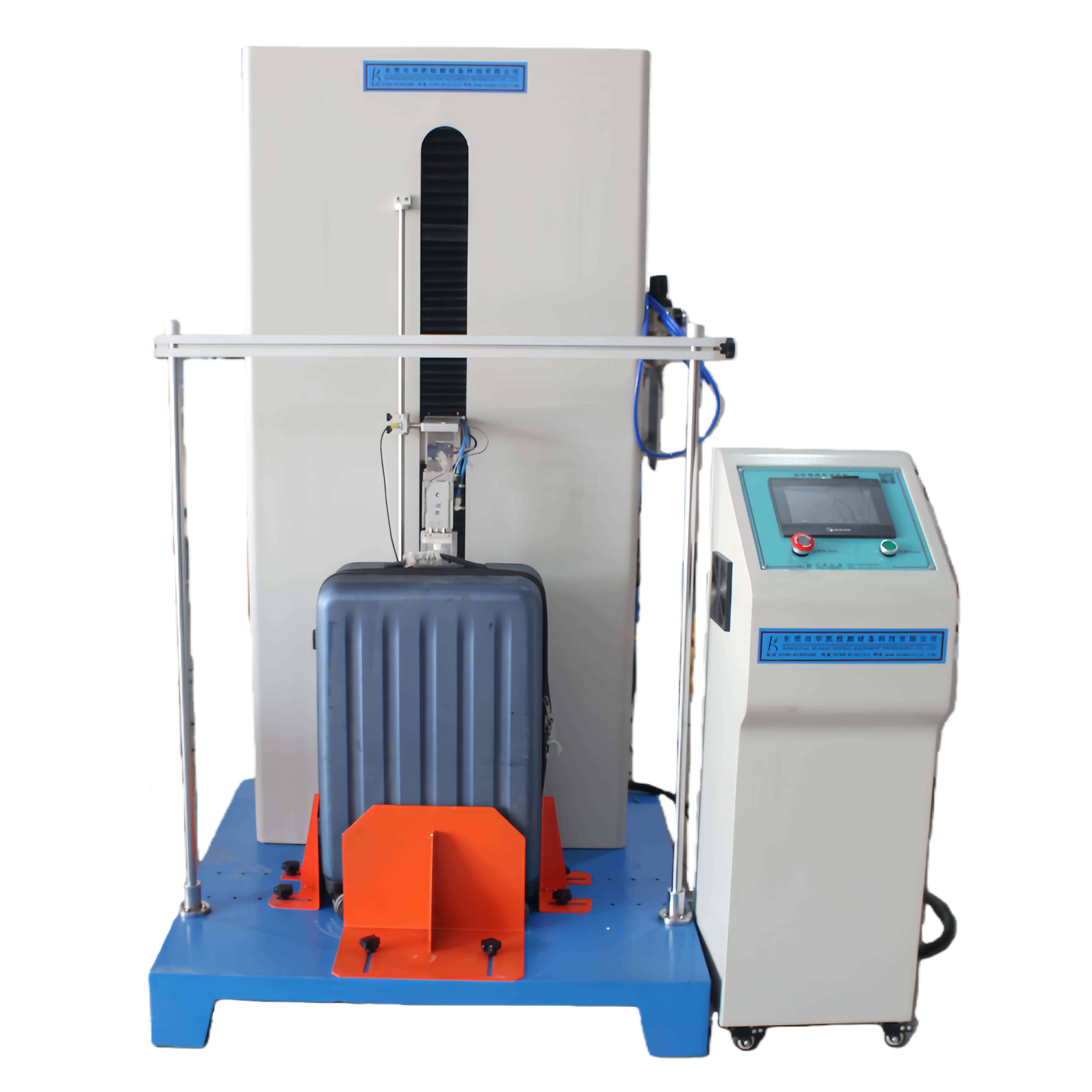

The Telescopic Handle Smoothness Tester is specially designed for evaluating the fatigue performance, structural strength, and durability of luggage telescopic handles. By performing continuous extension, compression, and locking/unlocking cycles under set frequency, this tester simulates real-world conditions to ensure the quality and reliability of suitcase handles. It is widely applied in luggage manufacturing, quality inspection departments, and product R&D centers.
Functions and Applications
* Tests luggage telescopic handle smoothness under repetitive cycles.
* Evaluates handle fatigue performance, structural strength, and lock durability.
* Supports segmented testing and stepless telescopic handle testing.
* Widely applicable to luggage factories, R&D, and quality control labs.

Product Paramenters

Item	Specification
Control System	PLC control with human-machine interface
Sample Fixture	Luggage fixed clamp base
Handle Clamp	Equipped with automatic handle lock switch
Motion System	Servo motor with synchronous belt drive, adjustable speed 0–30 cycles/min, pause time programmable
Testing Stroke	20–100 cm adjustable, with displacement recording ±1mm tolerance
Support Frame	Height ≥1500 mm with telescopic rail guide
Handle Lock Device	Adaptable installation for different handle lock types/positions
Testing Modes	Segmented testing supported
Counting Function	Automatic cycle counting, 1–999,999 times, auto-stop
Handle Testing	Simultaneous telescopic handle & lock testing
Extension Speed	0–30 cm/sec adjustable
Compression Speed	0–30 cm/sec adjustable
Driving Power	Servo motor
Machine Dimensions	100 × 100 × 190 cm
Machine Weight	180 kg
Power Supply	AC220V, 50Hz

Products Description

Structure and System Configuration
The system consists of a high-strength support frame, telescopic handle fixtures, servo-driven motion system, automatic handle lock switch, and PLC control with touch-screen interface. It supports segmented operation, precise displacement recording, and automatic counting functions for enhanced accuracy and efficiency.
Applicable Standards
Complies with QB/T2919-2018 and QB/T2155-2018 standards for luggage testing.

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
