Office Chair Seat and Backrest Compression Durability Testing Machine, Furniture Seat Comprehensive Fatigue Testing Machine

Name: Office Chair Seat and Backrest Compression Durability Testing Machine Furniture Seat Comprehensive Fatigue Testing Machine
Brand: HUAKAI
Price: 6 USD

Wholesale Office Chair Seat and Backrest Compression Durability Testing Machine, Furniture Seat Comprehensive Fatigue Testing Machine from china suppliers

Accuracy Class : High Accuracy

customized support : OEM, OBM

power : 600W

Application : Strength Testing

Type : Testing Machine

Brand Name : HUAKAI

Place of Origin : Guangdong, China

warranty : 1 Year

Voltage : 220 V

Accuracy : Seat Thrust: 0~200kg (adjustable)

Control : PLC (Programmable Logic Controller)

MOQ : 1 piece

Protection Class : IP65

Price : $6,000-8,000 / piece

Contact Now

Product Overview

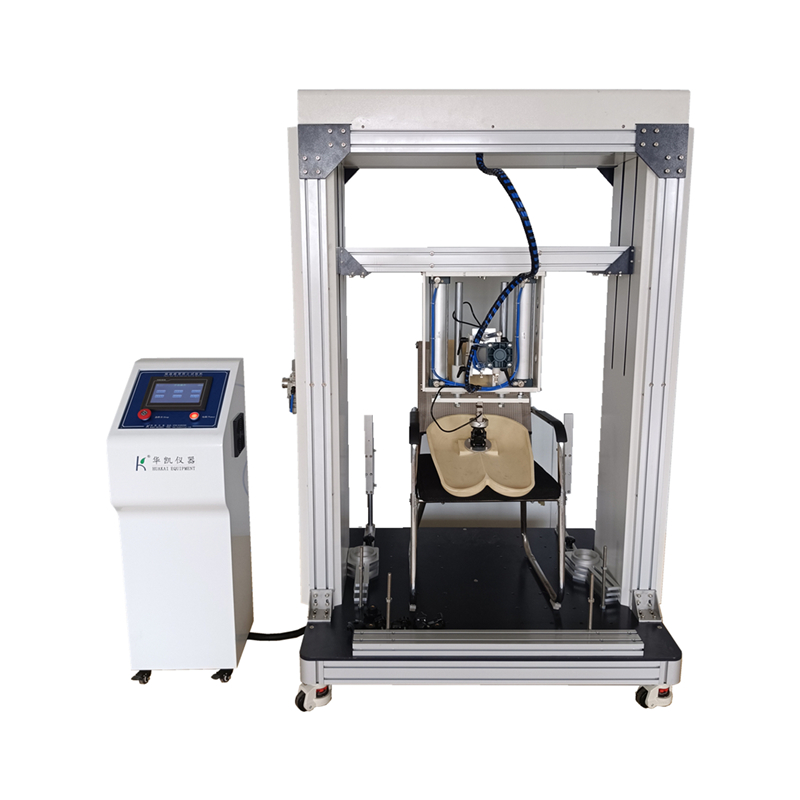

Office Chair Seat and Backrest Compression Durability Testing Machine, Furniture Seat Comprehensive Fatigue Testing Machine

The chair seat and back durability testing machine is designed for office chair durability testing, backrest fatigue
testing and tilt mechanism testing. The machine can also perform static load strength tests for office chairs to evaluate product reliability and structural performance.
Functions & Applications
This machine simulates repeated loading conditions on chair seats and backrests under specified force, speed and cycle
conditions. It is suitable for durability testing of office chairs and furniture products. It is widely used by furniture
manufacturers, testing laboratories and quality control departments.

Product Paramenters

Item	Specification
Actuator Stroke	Maximum 500 mm adjustable
Test Speed	0–40 cycles/min adjustable
Drive System	Motor driven actuator with vertical adjustment
Seat Load	0–200 kg adjustable
Backrest Load	0–100 kg adjustable
Control System	PLC programmable controller with large LCD display
Suitable Chair Height	300–600 mm
Compressed Air Requirement	6 kg/cm²
Holding Time & Cycle Time	0–9999 seconds adjustable
Power Supply	Single phase AC220V
Power Consumption	200 W

Products Description

Structure & Control System
The machine adopts a stable frame structure combined with pneumatic loading cylinders and a motor driven actuator system. The PLC control system with LCD interface allows easy setting of test speed, load, holding time and cycle parameters. The design ensures stable operation and accurate repeatability during long-term durability testing.
Standards
Designed according to general furniture durability testing requirements and office chair structural strength testing practices.

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
